Product Name: Veneer edge cutting machine

Models:this part is the cutting head of the veneer composer machine to be honest, due to the veneer surface is not flat, so this machine can do the cutting work on the veneers very good, can improve the high efficiency of this veneer using in the plywood production.

Description of Machines

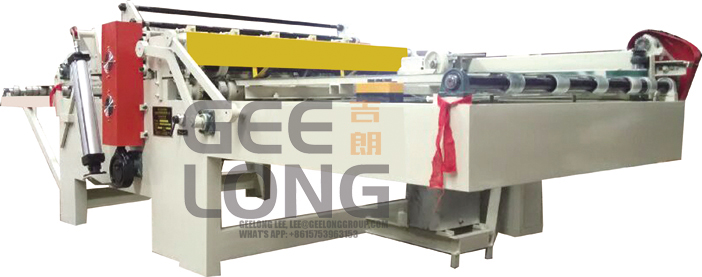

Veneer edge cutting machine:

Technical parameters of this veneer edge cutting machine:

名称 Name

参数 Parameters

型号 MODEL NO.

GLVEC1300

传送电机功率 Conveyor motor power

3KW

剪切电机功率 clipping motor power

3KW

传送电机功率 Conveyor motor power

3KW

刀长 knife length

1350MM

有效厚度Effective thickness of veneer

1.2-6MM

有效宽度effective width of veneer

200-840MM

进料速度material inlet speed

50meters/min

外形尺寸 Dimension of machine

5200x2200x1500mm

总重量 Total weight

2200KGS

总动力Total power

9KW
