Product Name: Pneumatic glue spreader machine, plywood glue spreading machine,

welcome to inquiry our machine.

Models:this glue spreading machine penumatic model, sold a lot in Indonesia, India,

Vietnam, Russia, welcome to inquiry our machine my friend, this machine control

the gap between glue upper roller and bottom roller, very quick, also easy for cleaning

the glue making to do the preparation for next days' work.

Description of Machines

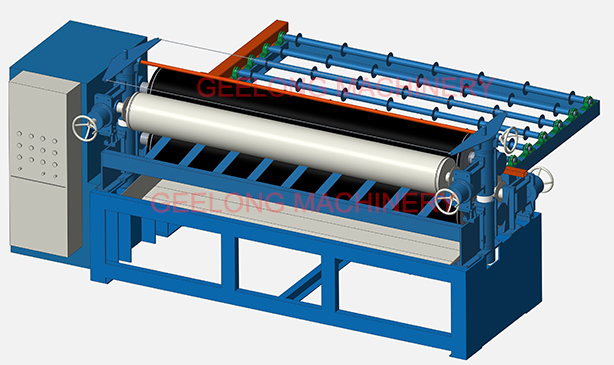

Plywood pneumatic glue spreader machine 3D drawing:

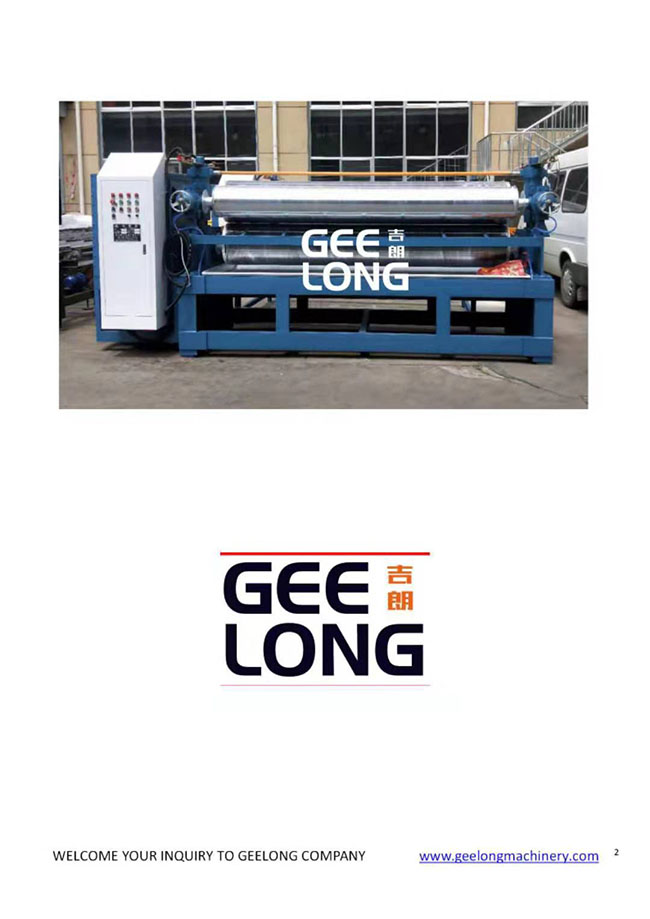

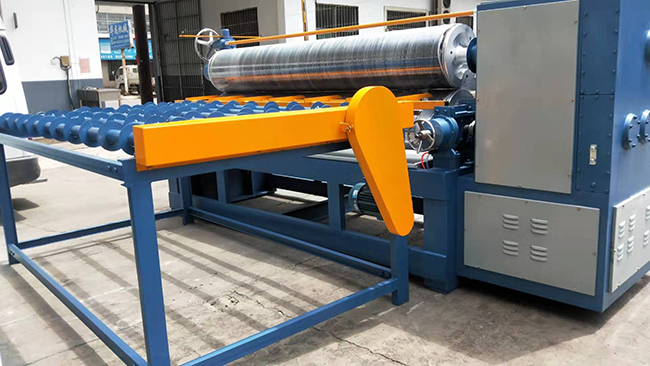

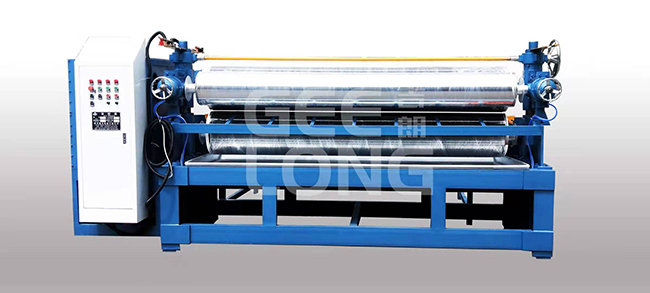

Plywood pneumatic glue spreader machine:

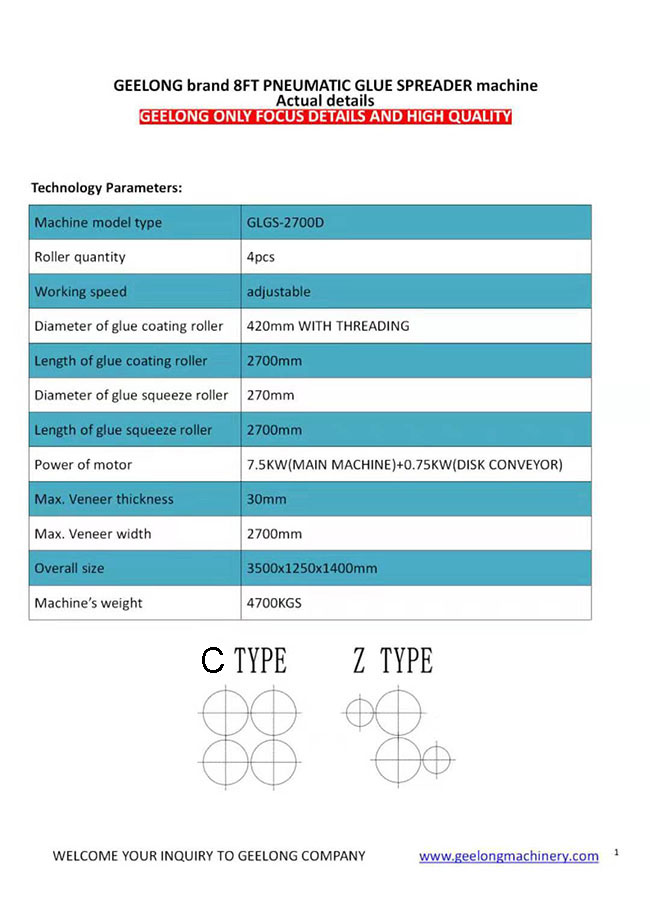

Technical parameters of this Plywood pneumatic glue spreader machine:

2700mm(9ft) glue spreader machine specification:
This specification is based on double side coating machine.

machine model type:GLGS-2700D
Roller quantity:4pcs
Working speed:adjustable
Diameter of glue coating roller: 415mm
Length of glue coating roller: 2700mm
Diameter of glue squeeze roller: 270mm
Length of glue squeeze roller: 2700mm
Power of motor: 7.5kw
Max. Veneer thickness: 30mm
Max. Veneer width: 2700mm
Overall size: 4200x1250x1400mm
Machine's weight: 4000KGS

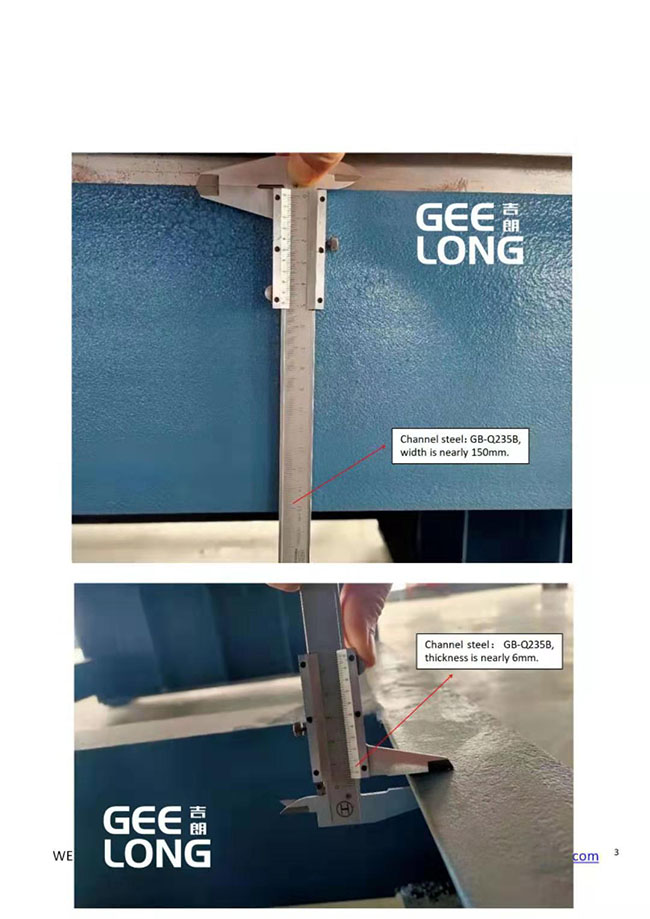

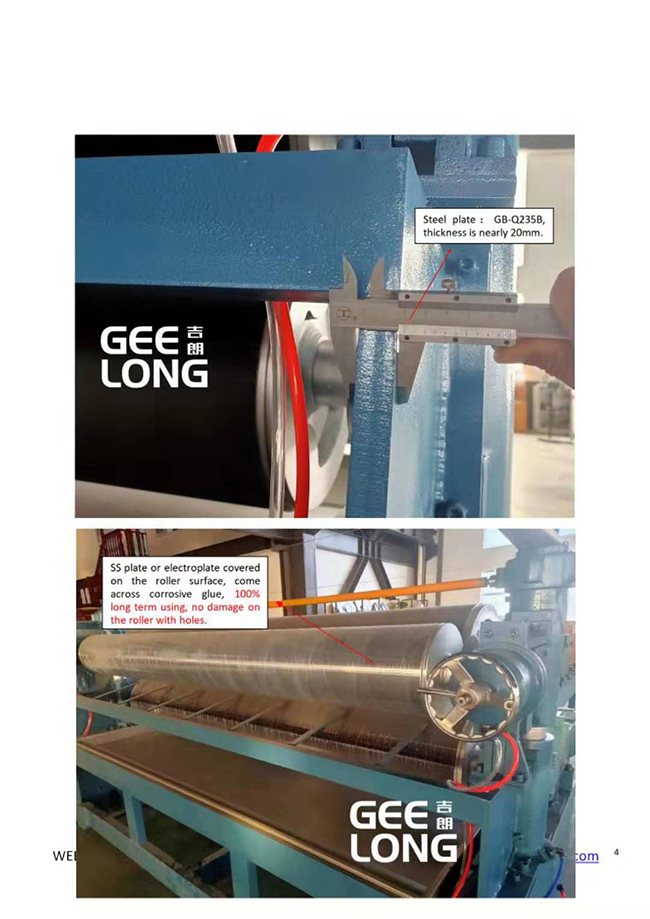

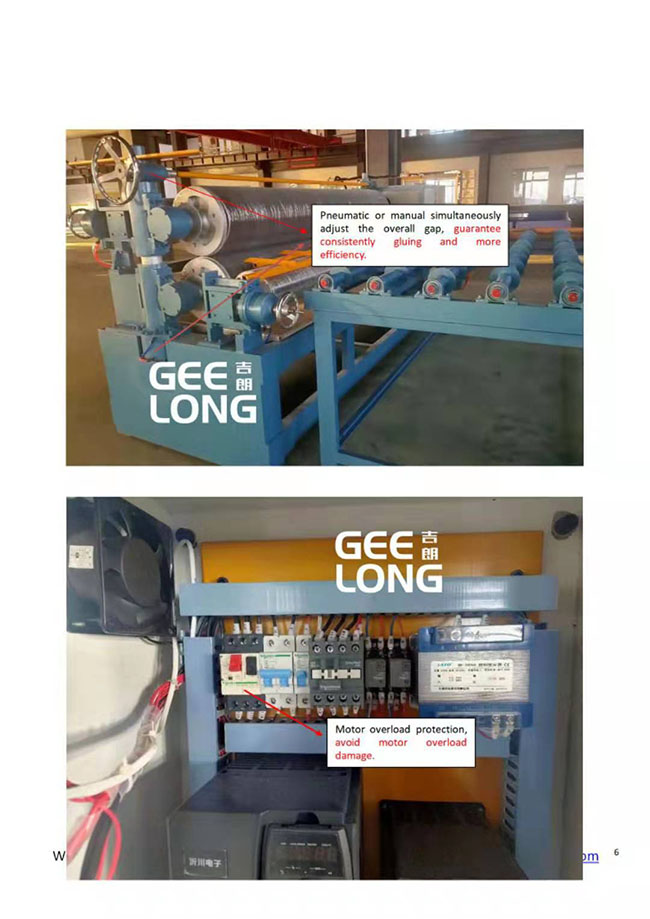

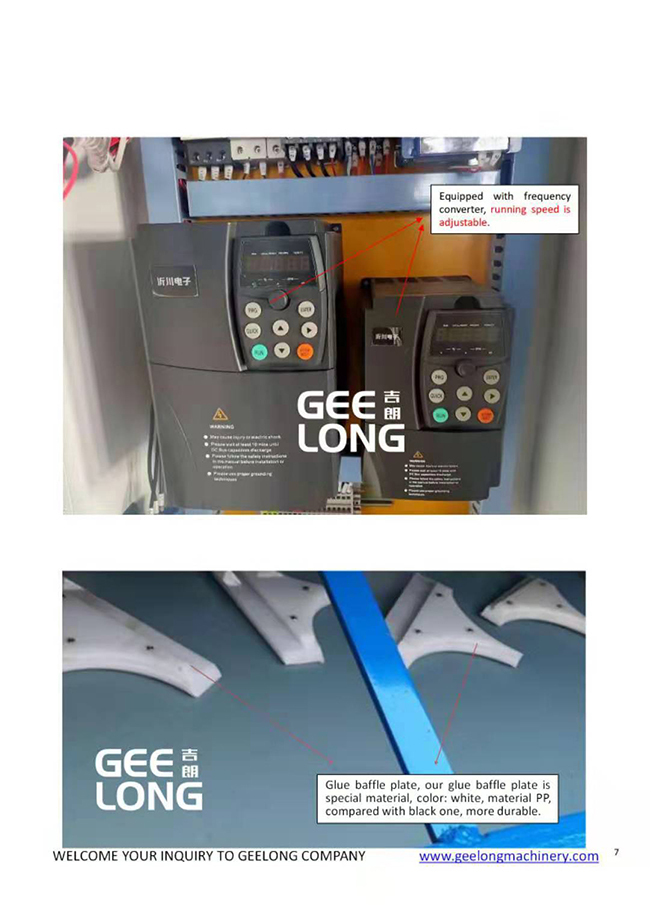

Pneumatic glue spreader machine technical details of its high quality:

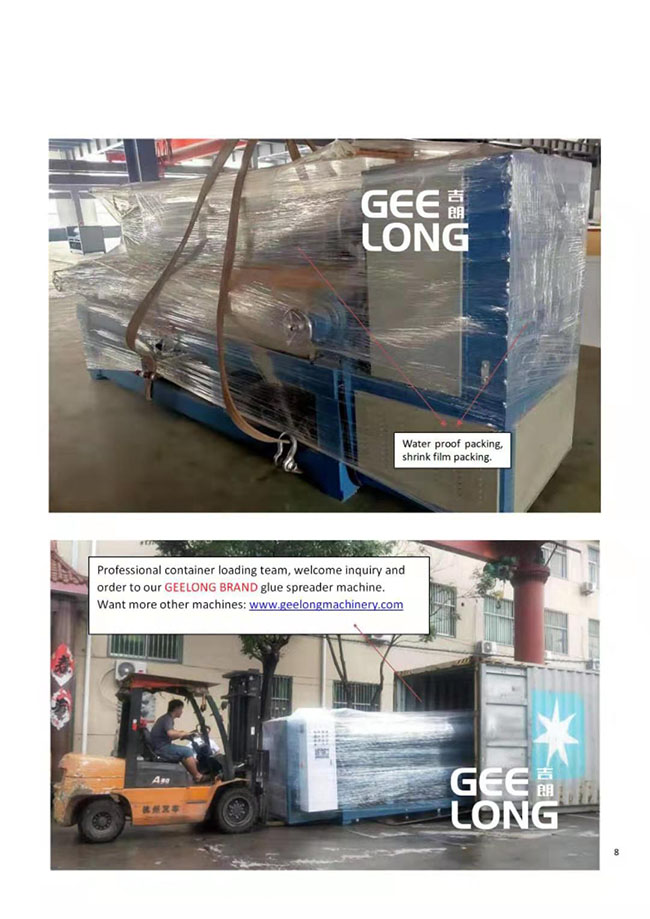

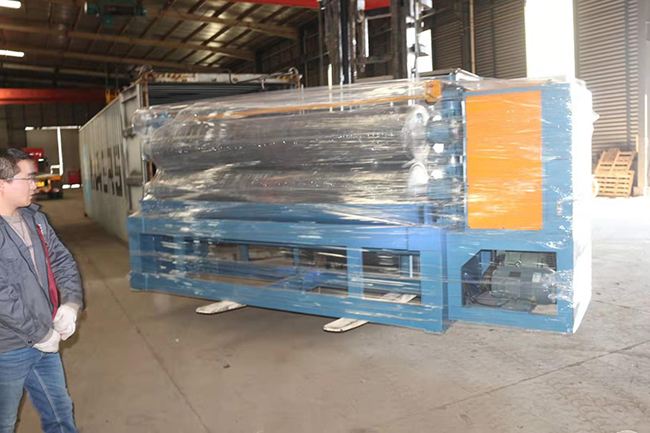

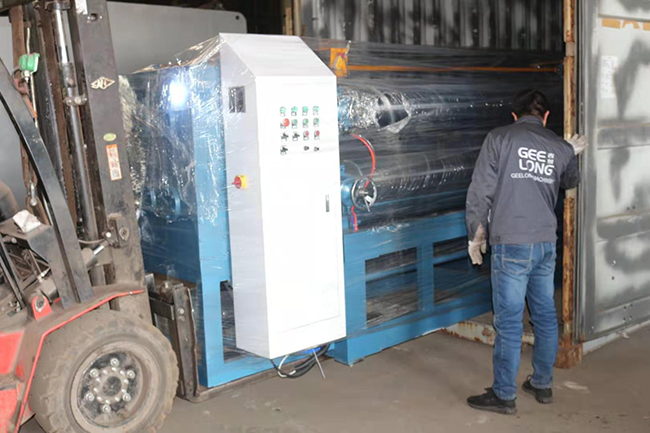

Pneumatic glue spreader machine exporting work:

WORKING VIDEO OF THIS VENEER GLUE SPREADING MACHINE:
