Your present location: Home>>Plywood Machine>>Glue Spreader Machine

Product Name:Plywood Glue Spreader Machine, plywood glue spreading machine, 1400mm glue spreader machine, 2700mm glue spreader machine, pneumatic glue spreader machine, air pison control glue spreader machine, gear transmission glue spreader machine, welcome to inquiry GEELONG brand machine, must supply you with high quality machine.

Size:4Feet, 5Feet, 6Feet, 8Feet, 9Feet.

Characteristic: Good adjustable for glue spreading accuracy.

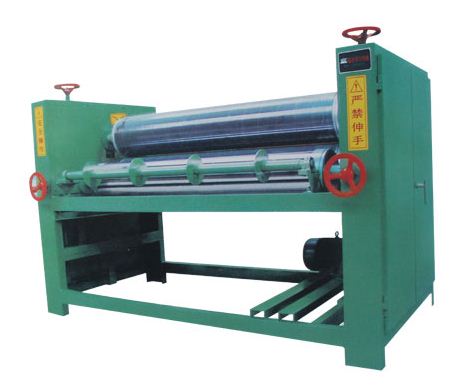

4feet glue spreader machine, 5ft glue spreading machine:

Function: gluing veneers, then paving the mat-plywood board.

Technical parameters tables of 4ft glue spreader machine:

8 feet glue spreader machine, 9ft glue spreading machine:

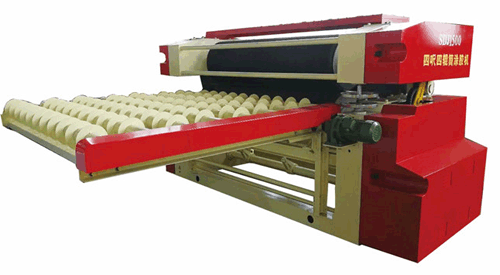

4 feet, 5 feet, 8 feet, 9 feet NEW TYPE glue spreader machine:

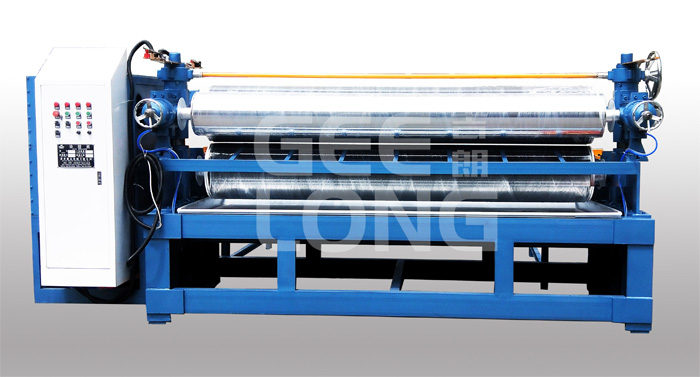

8ft glue spreader machine, 9ft air pison glue spreader machine:

pneumatic glue spreader machine is used coat the glue on the core veneer and plywood on average.the

openning distance between the rubber roller can be adjusted by air.this guarantee the openning distance Uniformity

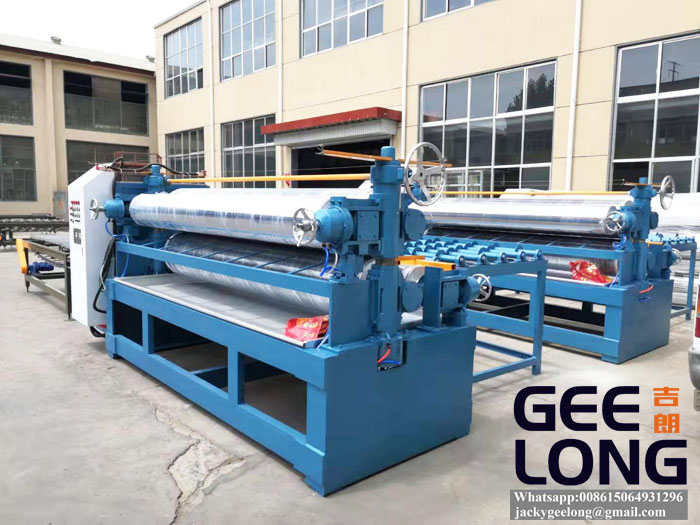

2700mm(9ft) glue spreader machine specification:
This specification is based on double side coating machine.

machine model type:GLGS-2700D
Roller quantity:4pcs
Working speed:adjustable
Diameter of glue coating roller: 415mm
Length of glue coating roller: 2700mm
Diameter of glue squeeze roller: 270mm
Length of glue squeeze roller: 2700mm
Power of motor: 7.5kw
Max. Veneer thickness: 30mm
Max. Veneer width: 2700mm
Overall size: 4200x1250x1400mm
Machine's weight: 4000KGS

FOR MORE DETAILS OF PNEUMATIC GLUE SPREADER MACHINE, PLEASE CHECK THE LINK AS BELOW:

http://www.geelongmachinery.com/pneumatic-glue-spreader-machine-for-plywood-production.html

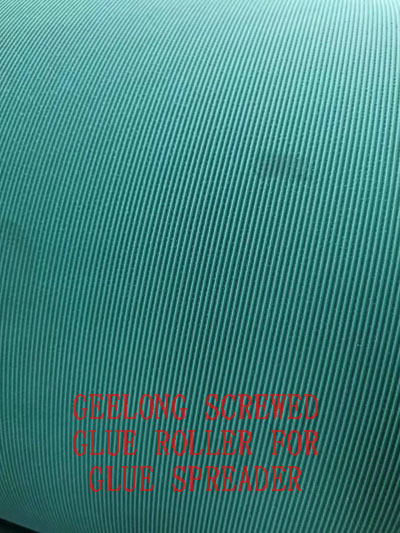

All GEELONG brand glue spreader machine is equipped with screwed glue rollers:

Description of glue spreading machine:

The glue spreader machine spreads the glue on the core veneers, multi-layer board, plywood, block board

and so on. it has three rollers and four rollers. The one with three rollers is single-side glue coating machine.

The glue spreader with four rollers is double-side coating machine. The glue spreader is divided into 4ft, 5ft,

8ft, 9ft and so on. It can be customized according to client's requirement. It is produced with resonable design,

glue coating averagely, saving cost, easy operation and lower price.

Features of this machine:

1. It has various uses, it can be used for core veneer, multi-layer board, plywood, block board and so on.

2. It has coating averagely, high productivity, saving glue, saving staff and save cost.

3. Increasing the utilization of glue and decreasing and minimize glue consumption.

4. Rubber rollers is made by the high quality natural rubber, the squeeze roller is chromate treatment seamless

steel pipe, also is covered by stainless steel plate material, whole working life no RUST HAPPENED.

5. The safety device is able to immediate stop the machine whenever the danger occurred.

6. Easy operation and easy maintenance.

MORE MACHINE DETAILS, PLEASE DOWNLOAD THIS DOC.
