Product Name: china plywood RGV, china plywood transfer car

Characteristic: this china plywood RGV is used to move the plywood from plywood making one section to antoher section, very easy to use, reduce the forklift machine.

Description of Machines

CHINA PLYWOOD RGV:

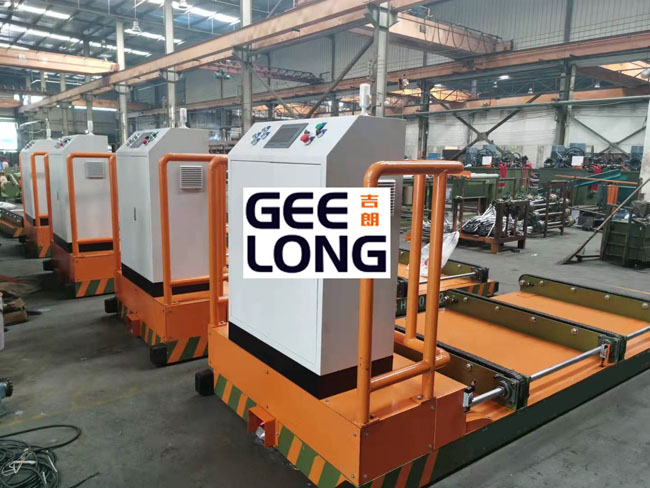

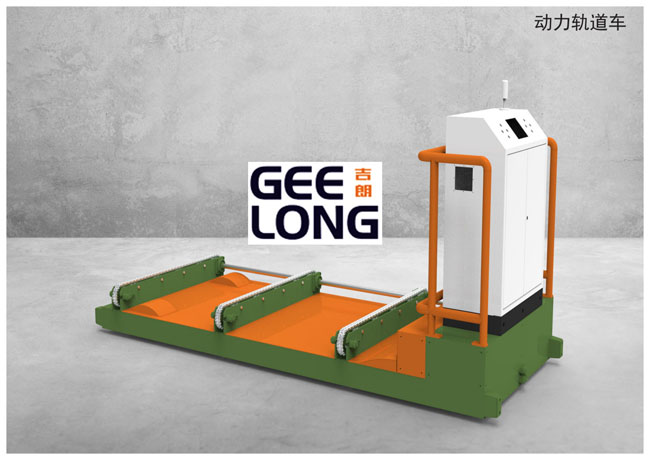

Automatic Intelligent Plywood RGV, name also called plywood rail guided vehicle, this RGV is used to move the plywood from one sections to another section, like move from plywood cold press machine to plywood hot press machine, from plywood paving line to plywood cold pressing section, from the plywood hot press machine area to plywood cutting or sanding line or plywood putty line, this PLYWOOD RGV is very convenient, it has many advantages as below:



  • Reduce the working of forklift;
  • Saving the cost of using forklift;
  • More safe and more convenient;
  • Improve the efficiency of connecting each sections;
  • Automatic control or remote control



外形尺寸
Machine dimension

1300*3300*1400mm

引导方式
Controlling methods

PLC control

载重 Loading weight

3T

驱动方式 Driving methods

Motor driving

移动速度 Moving speed

30m/min

电机功率 Motor power

3KW 380V
